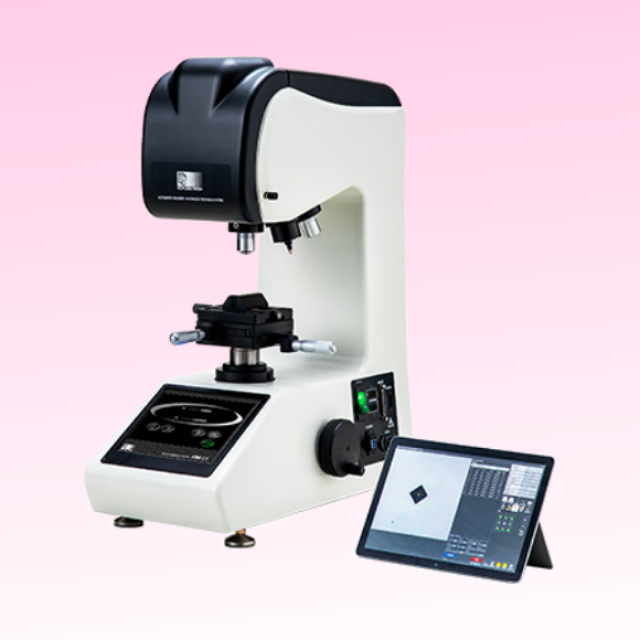

Future Tech | Máy đo độ cứng vi mô FM-X1/FM-X1R series

Item

FM-X1R

FM-X1

Test load

8 load levels for A type:10/25/50/100/200/300/500/1000gf

Test load switching method

Weight type dial switching type

Loading mechanism

Automatic load/hold/release method

Load applying speed

60μm/sec (Compliant standards: JIS B 7725, ISO 6507-2, ASTM E92: 15 to 70μm/sec)

Dwell time

5 ～ 40sec

Turret mechanism

Rotation: Automatic / Form: 15° tilt type 6 positions

Diamond indnter

Standard

1 Vickers indenter (HV)

Option

Mounted indenter can be changed to Vickers indenter (HV) or Knoop indenter (HK).
(Simultaneous mounting of multiple indenters is not possible.)

Infinity objective lens

Standard

2 Lenses ( X 50 & X 10)

Option

Up to 5: (2 standard lenses + 3 additional lenses): X1.25 / X2.5 / X5 / X20 / X100
*5 lenses + 1 indenter

Automatic measurement camera device

Standard equipment
(Details below)

-

Light source

Built-in LED light source

Dimensions

W283 x D480 x H620mm

Weight

45kg

Power supply

Single phase AC100～240V 50/60Hz
